MA Engineering Solutions

MA Engineering Solutions is involved in the manufacturing, Supply & fabrication of Pre-Engineered Steel Buildings (PEB) and modular Sandwich Panels, backed up by a team of experienced Engineers who are constantly endeavoring to provide the best possible Engineering solutions within the shortest possible time to the client.

MA Engineering Solution enjoys excellent reputation as a well-organized, state of the art and leading company in the Government, Private and Non-Government Organizations, all around Pakistan and abroad.

Sandwich Panels

OUR SERVICES

MA Engineering Solutions can design, fabricate and deliver any complex building as per customer requirements. Pre-Engineered Steel Buildings use a combination of built-up sections. hot rolled sections. and cold formed elements and profiled steel sheets which provide the basic steel frame work with a choice of single skin sheeting with added insulation or insulated sandwich panels for roofing and wall cladding or brick wall.

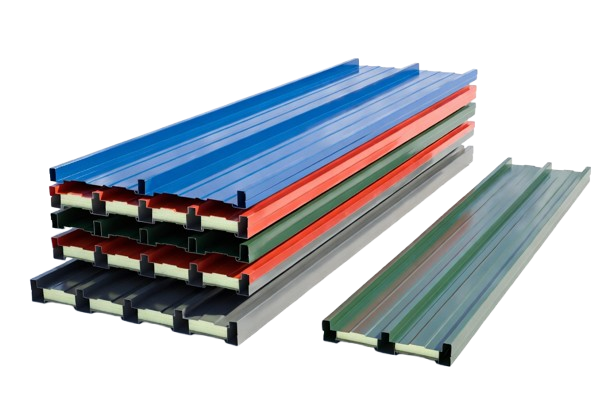

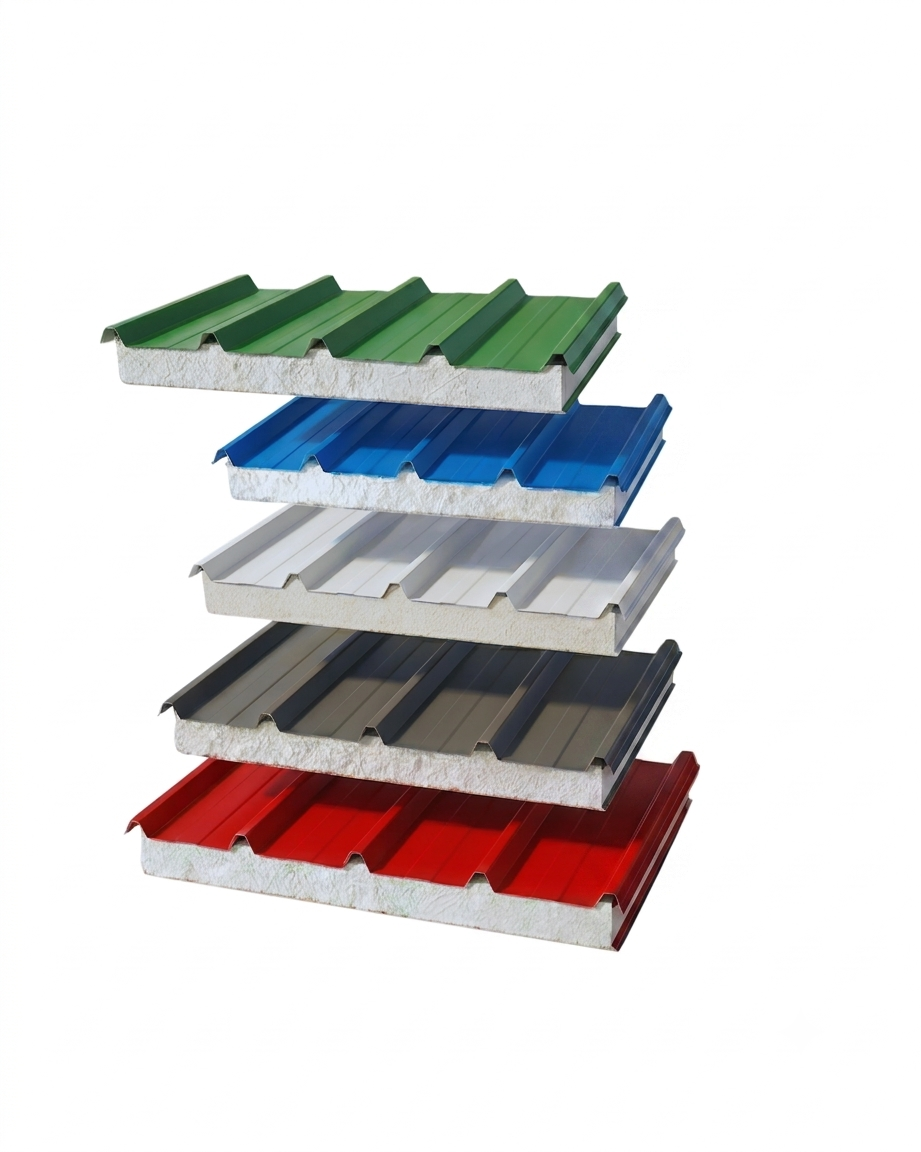

Sandwich Panel

A sandwich panel is any structure made of three layers: a low-density core, and a thin skin-layer bonded to each side. Sandwich panels are used in applications where a combination of high structural rigidity and low weight is required.

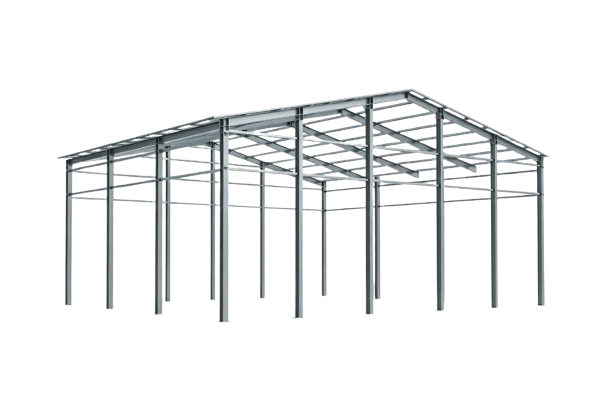

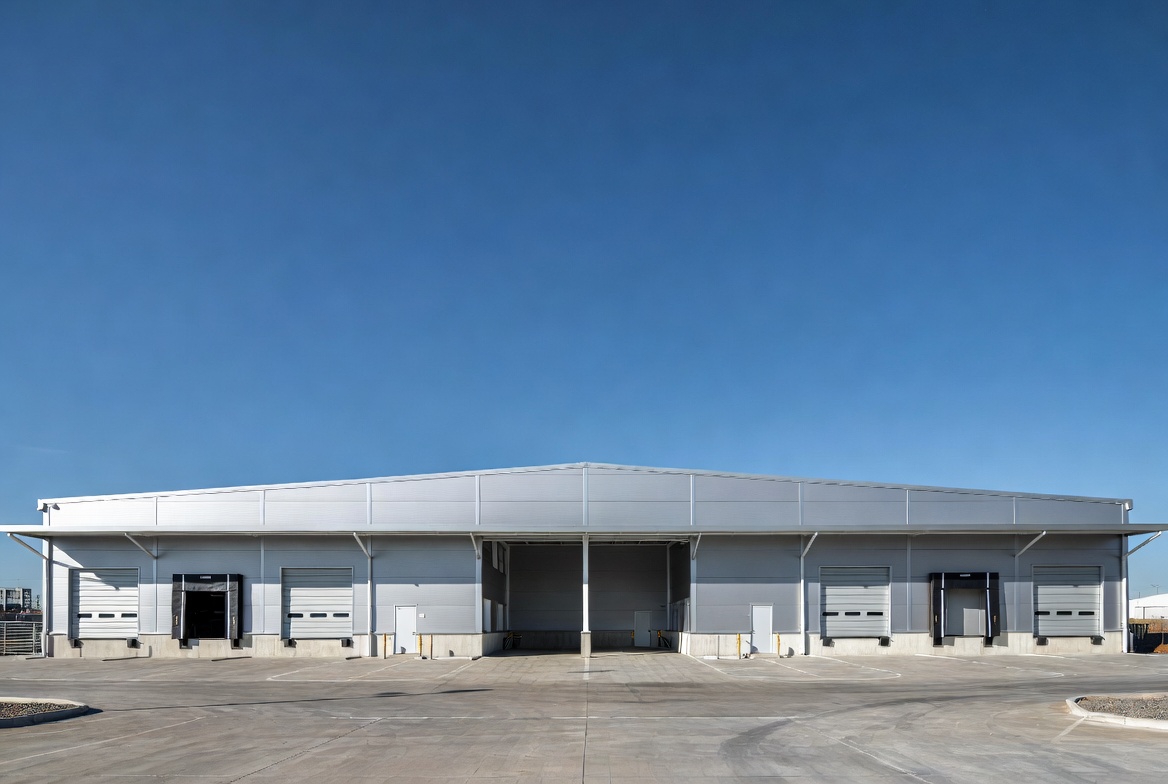

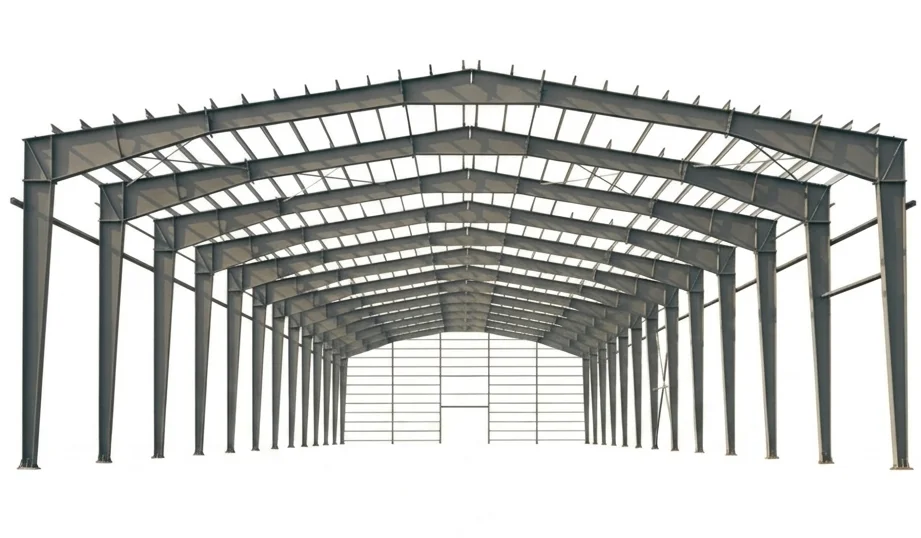

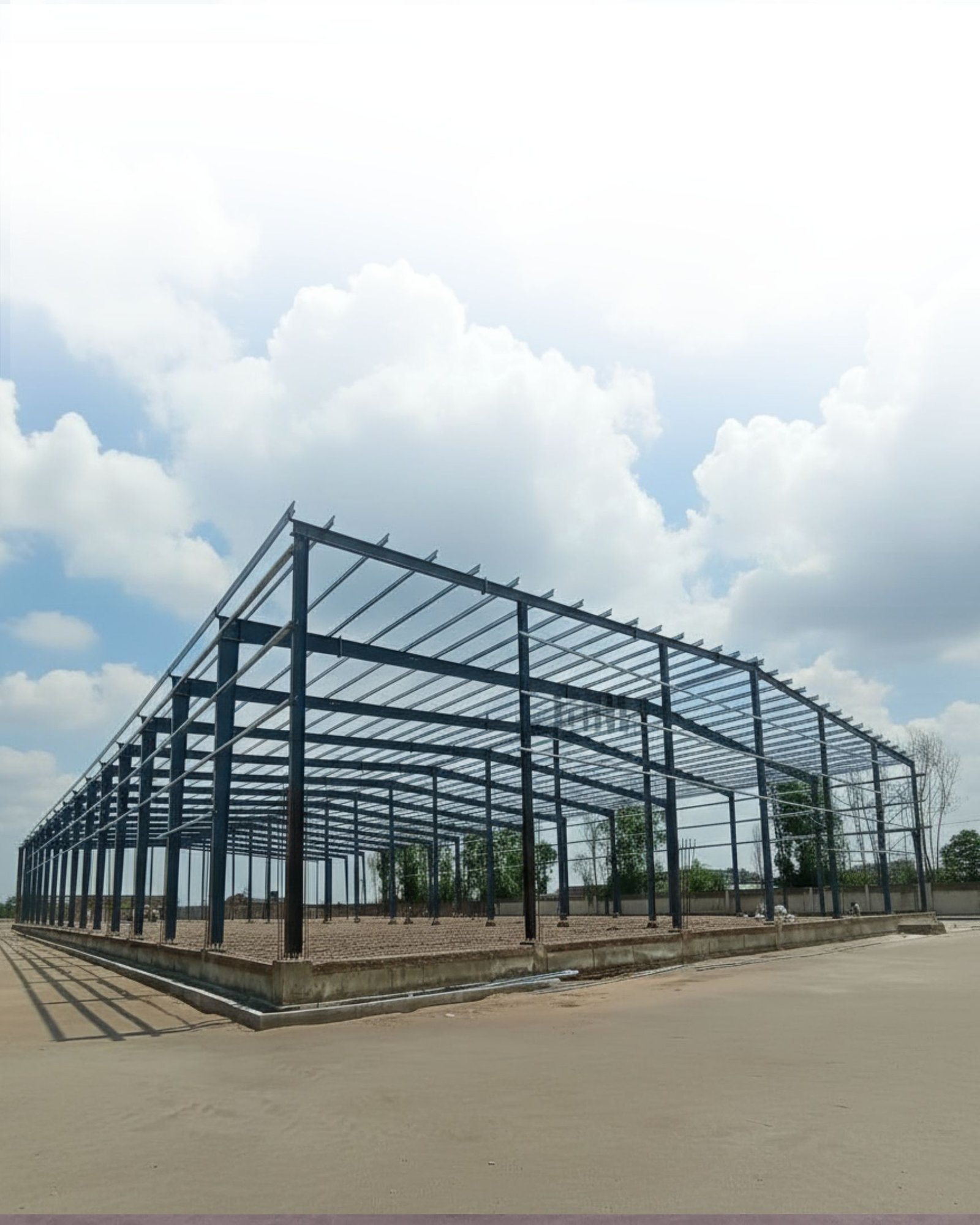

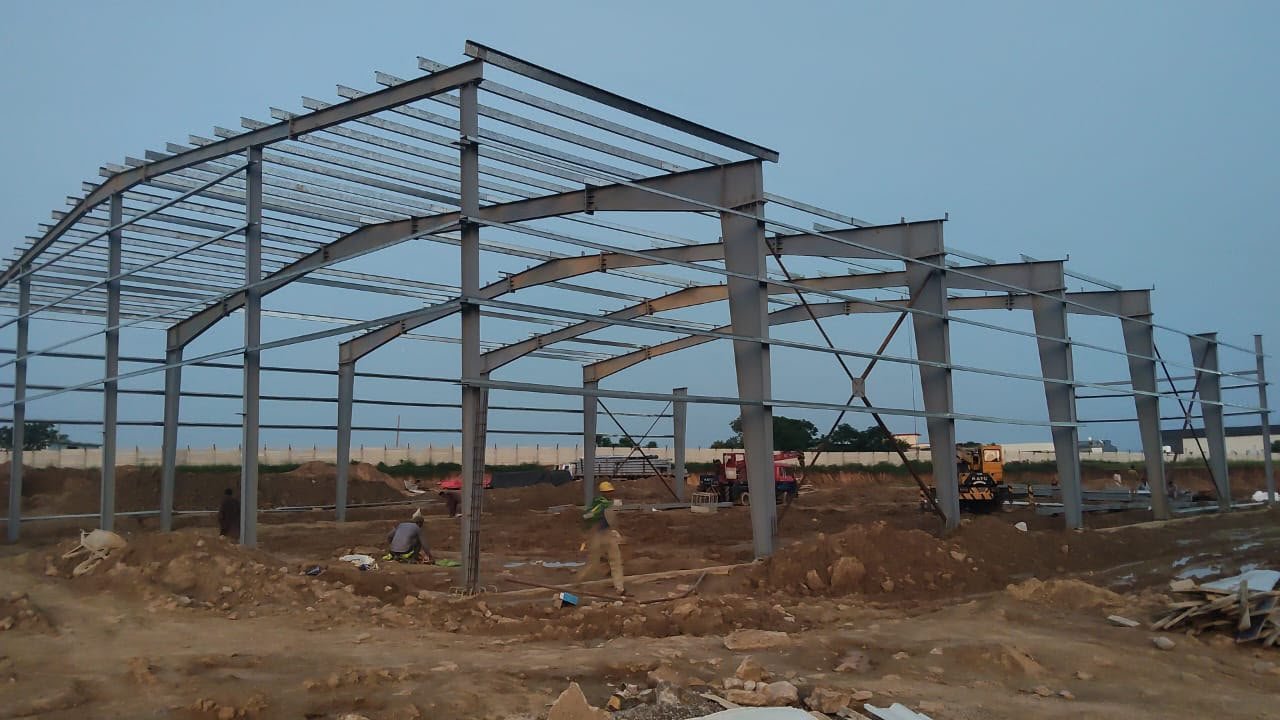

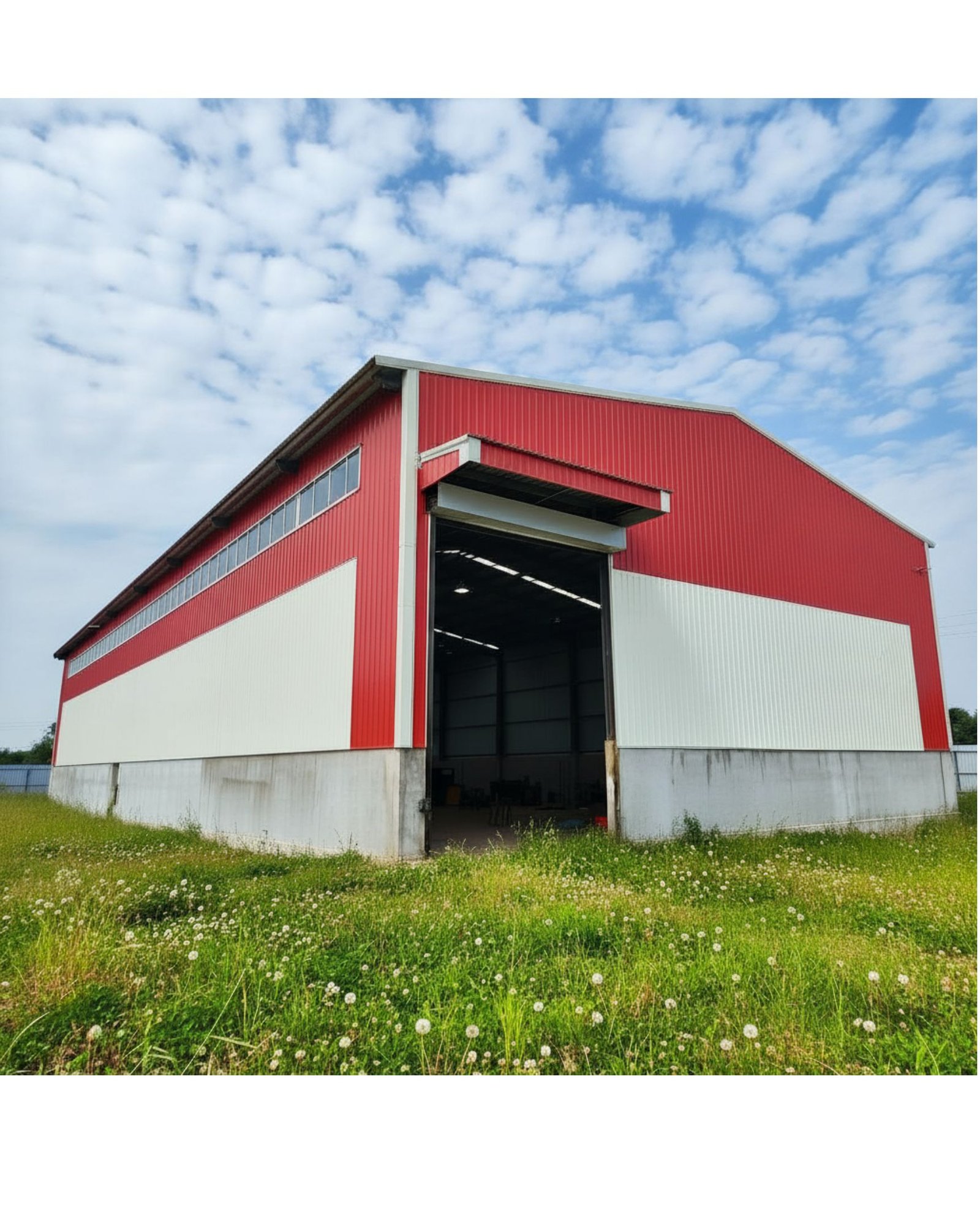

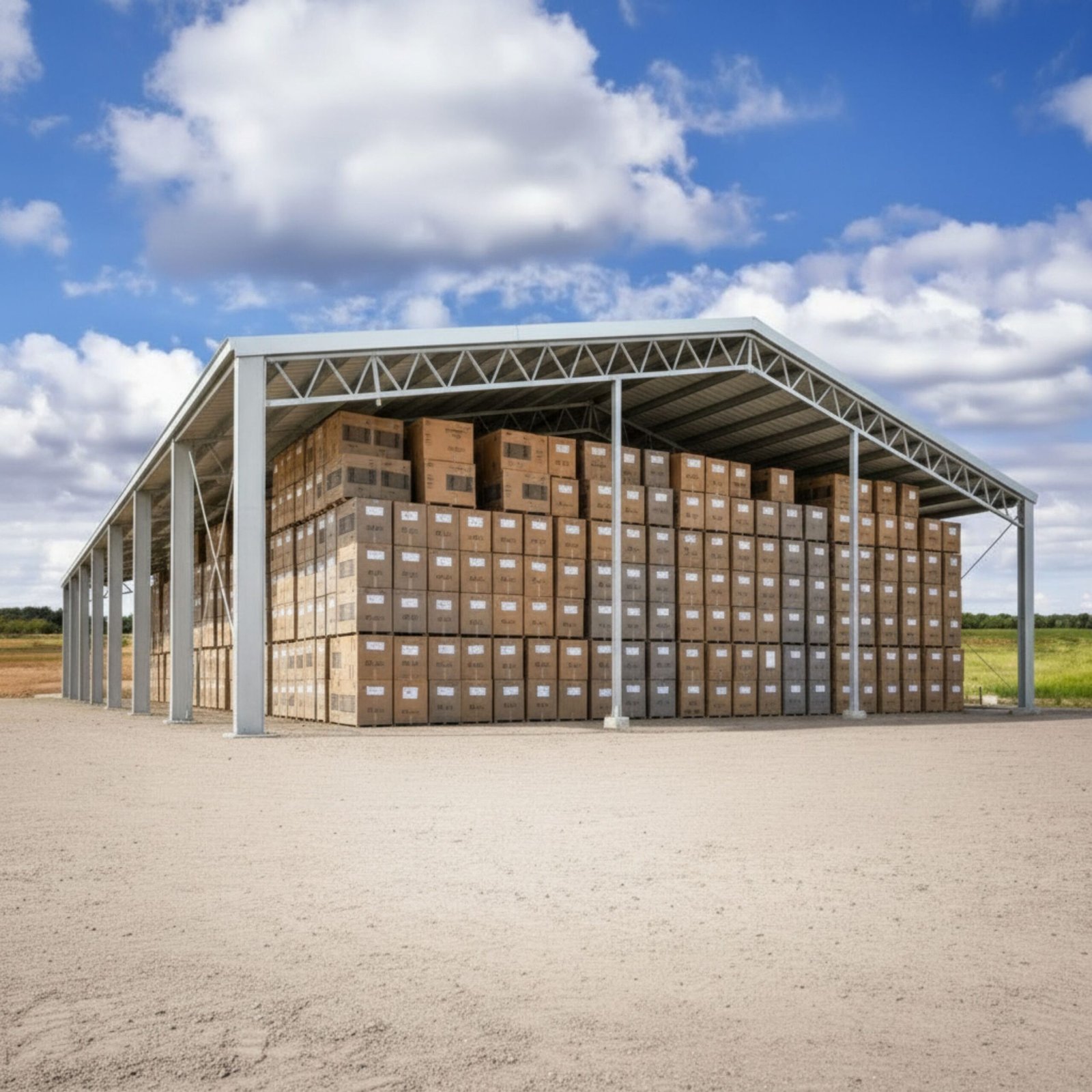

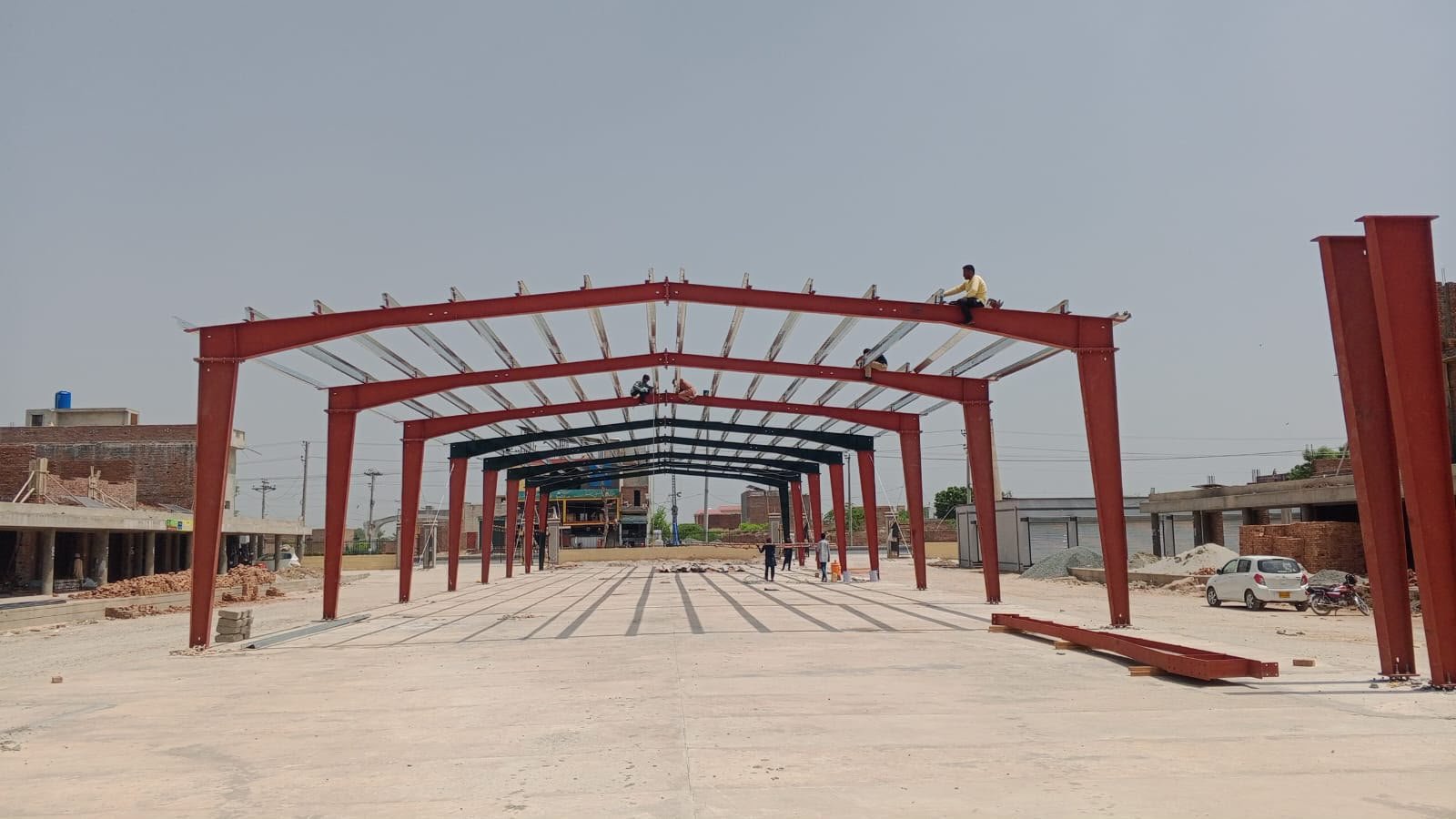

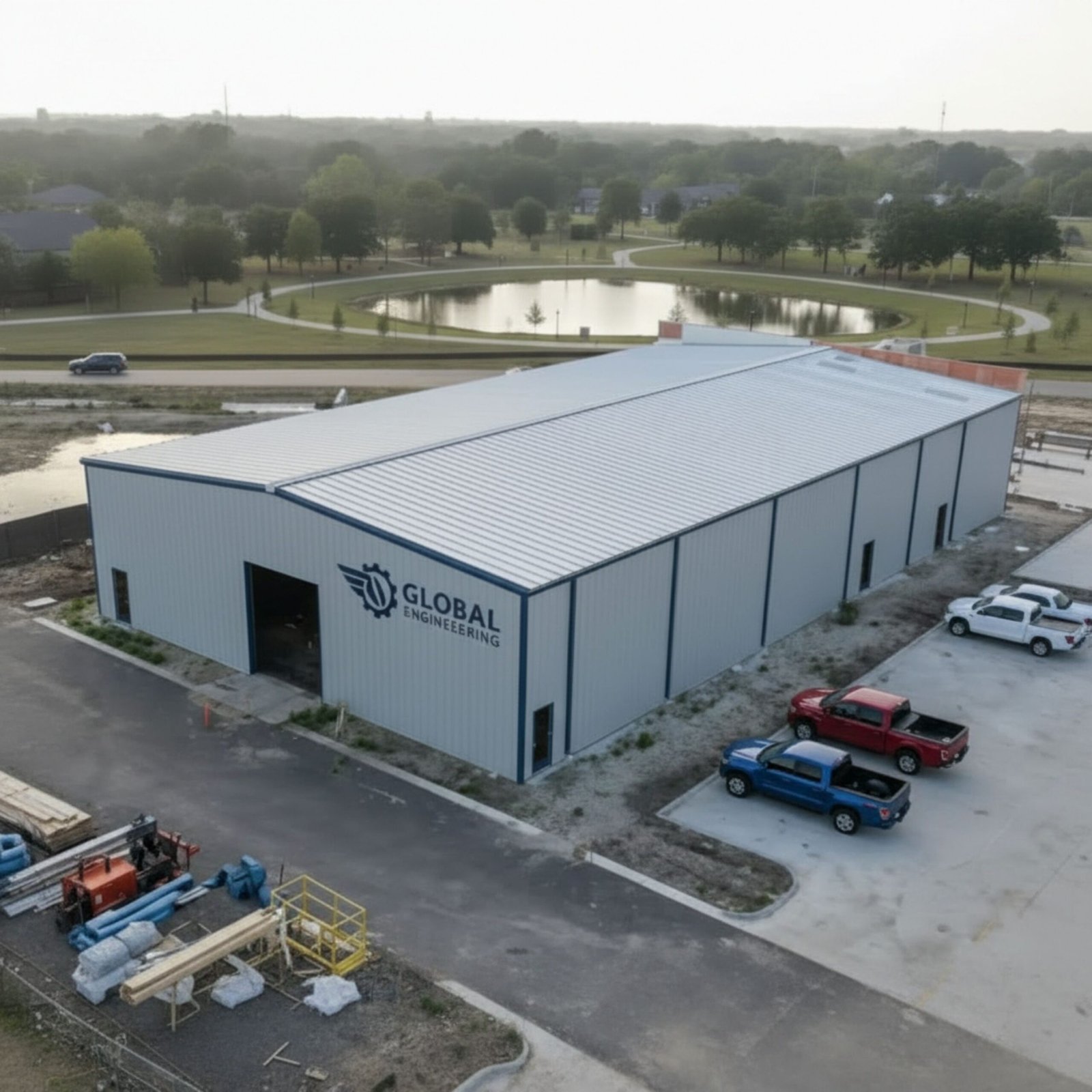

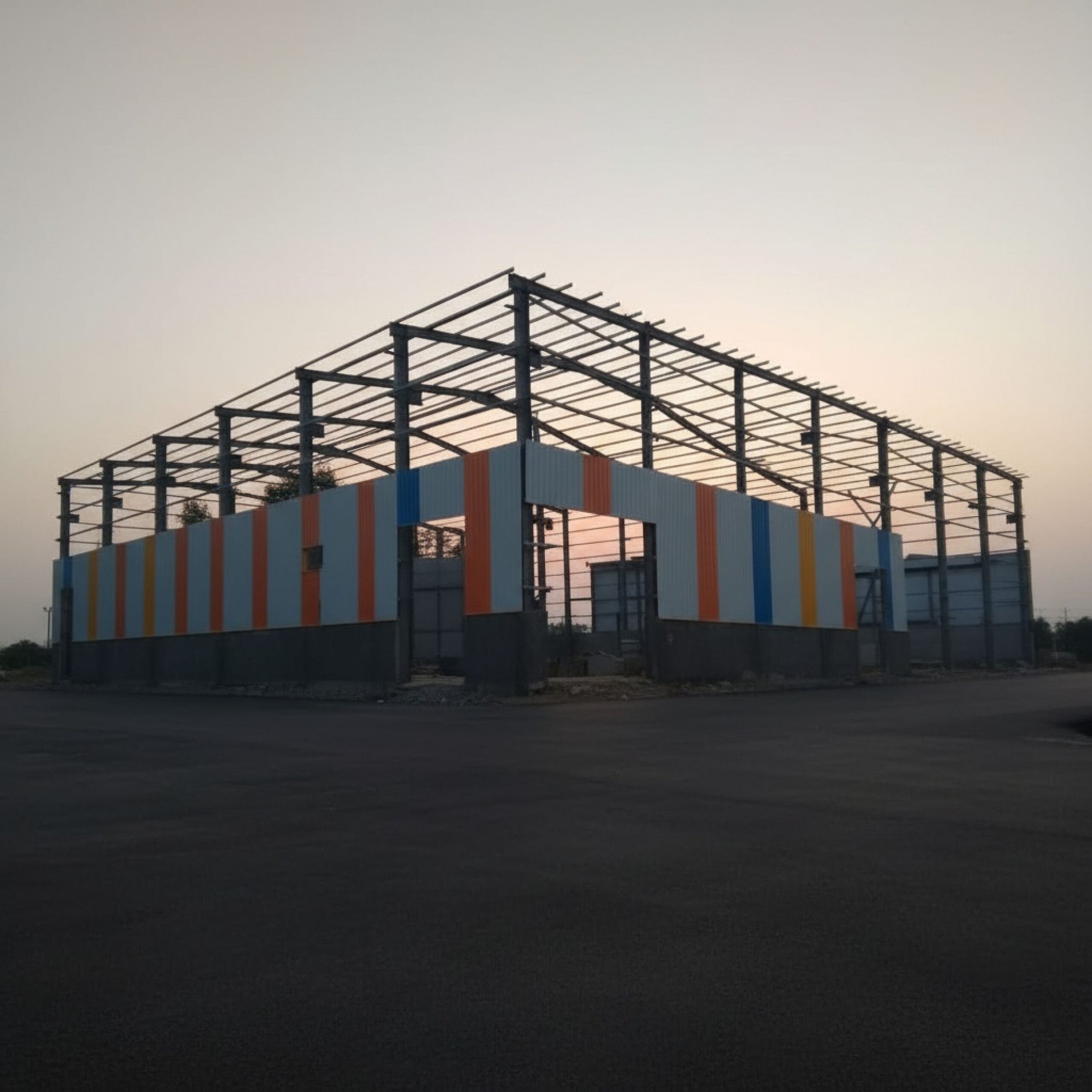

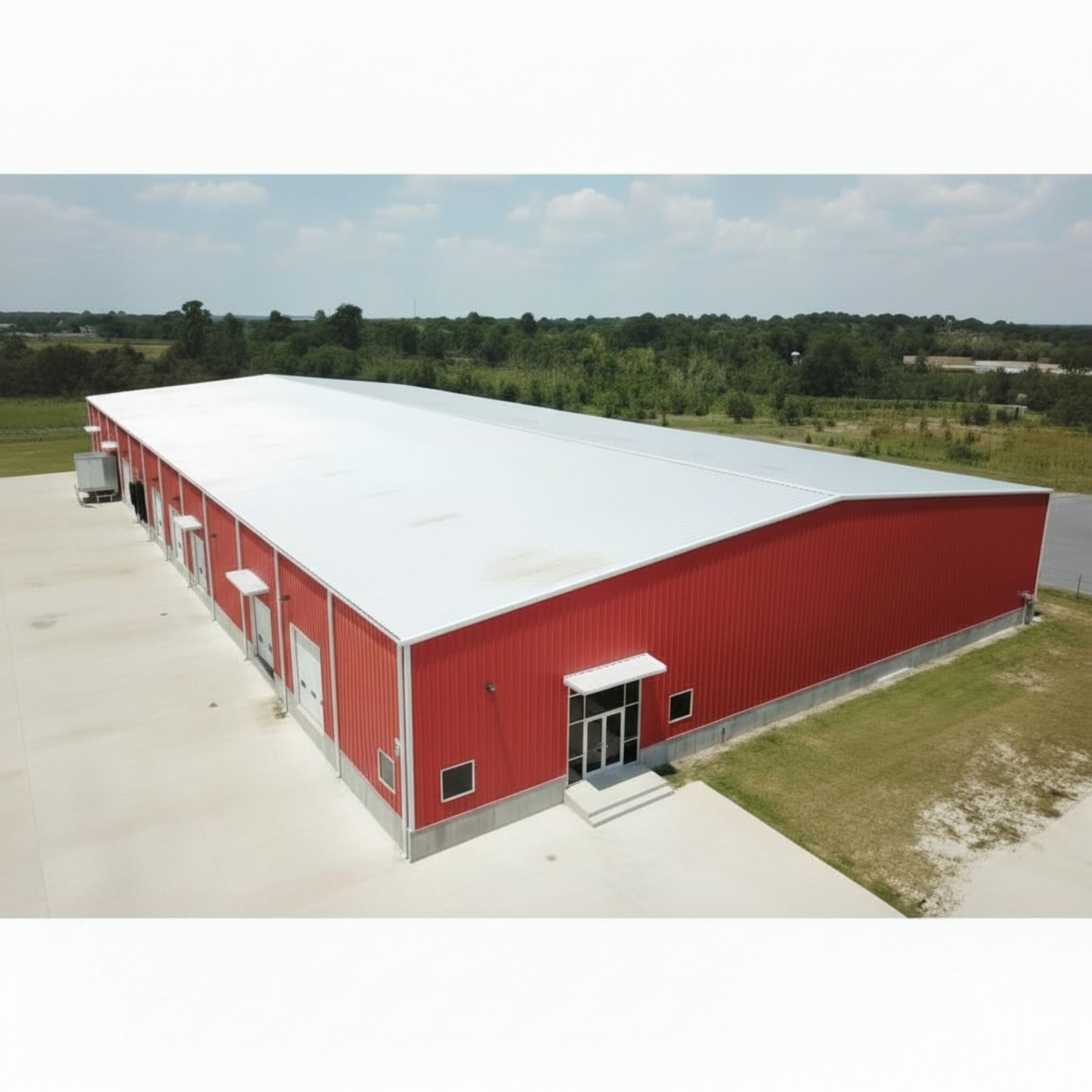

Pre-engineered steel buildings (PEB)

Pre-engineered steel buildings (PEB) are a steel structures built over a structural concept of primary members, secondary members, roof and wall sheeting connected to each other and various other building components.

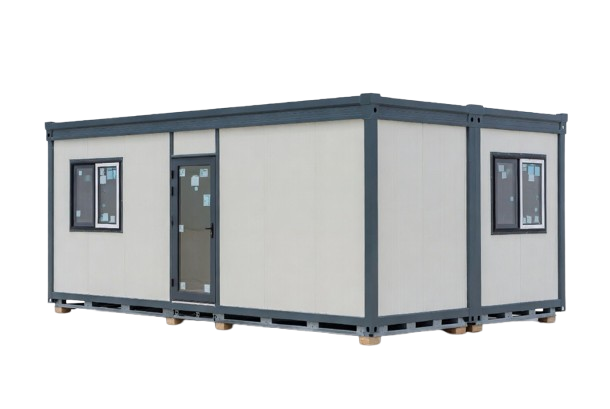

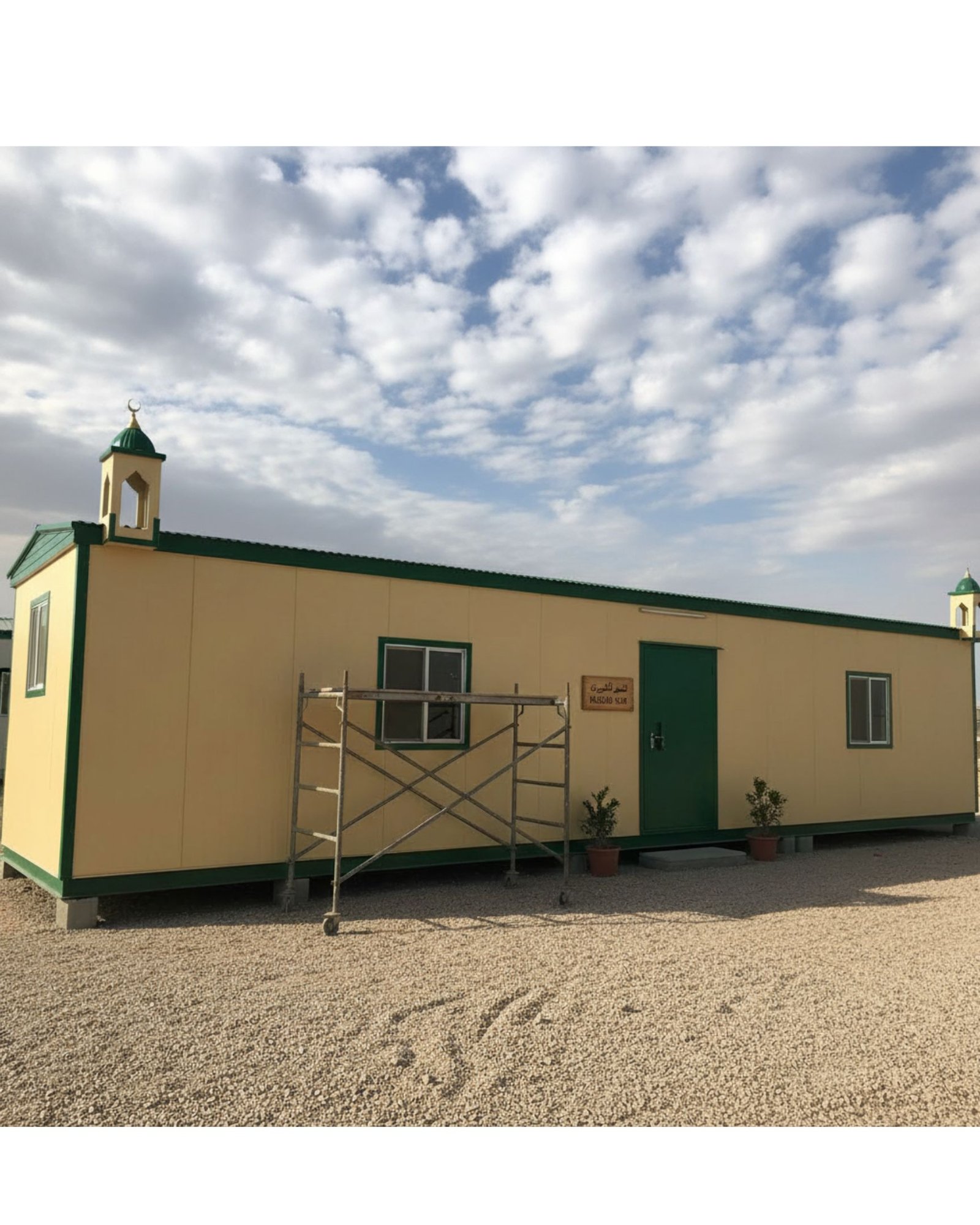

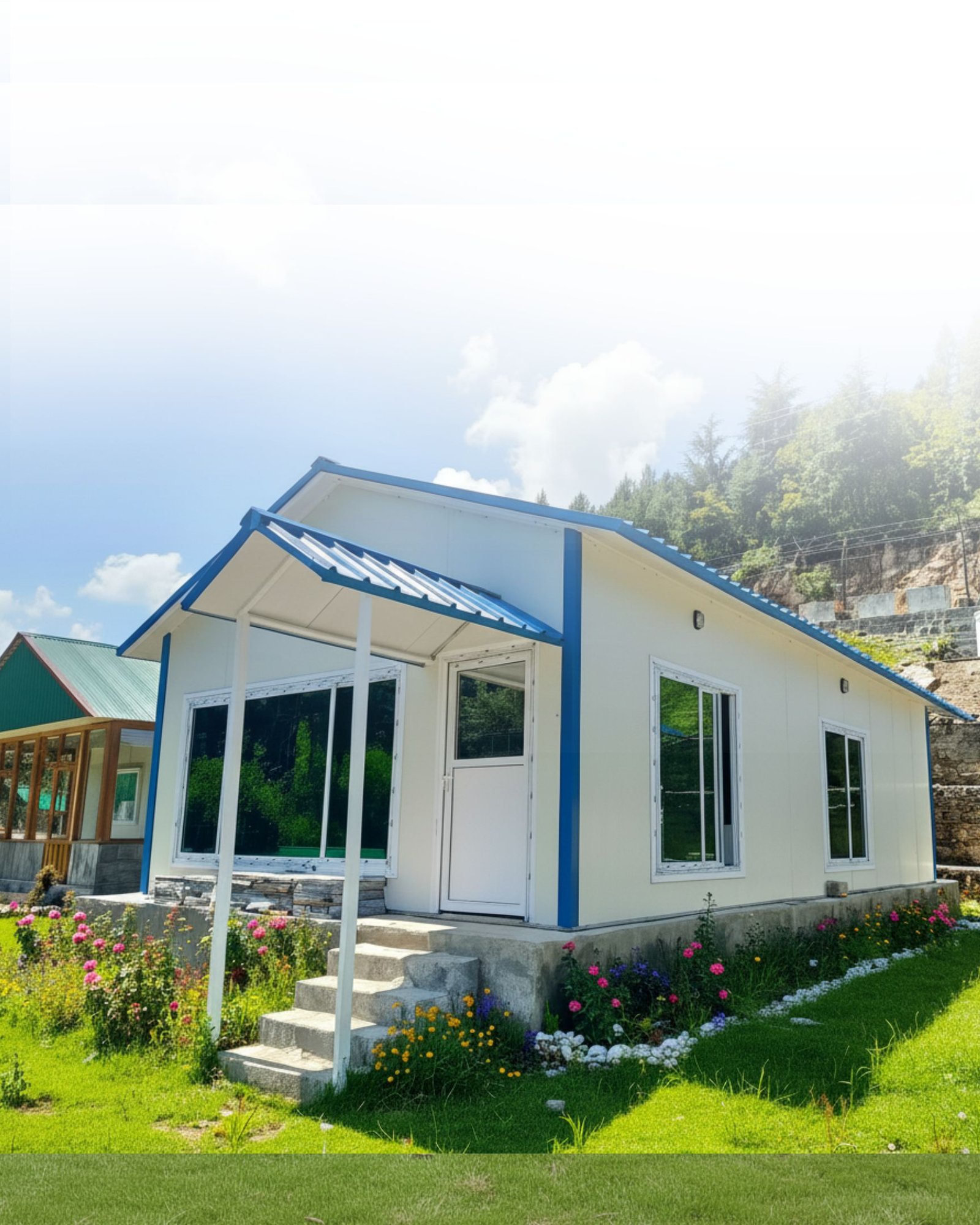

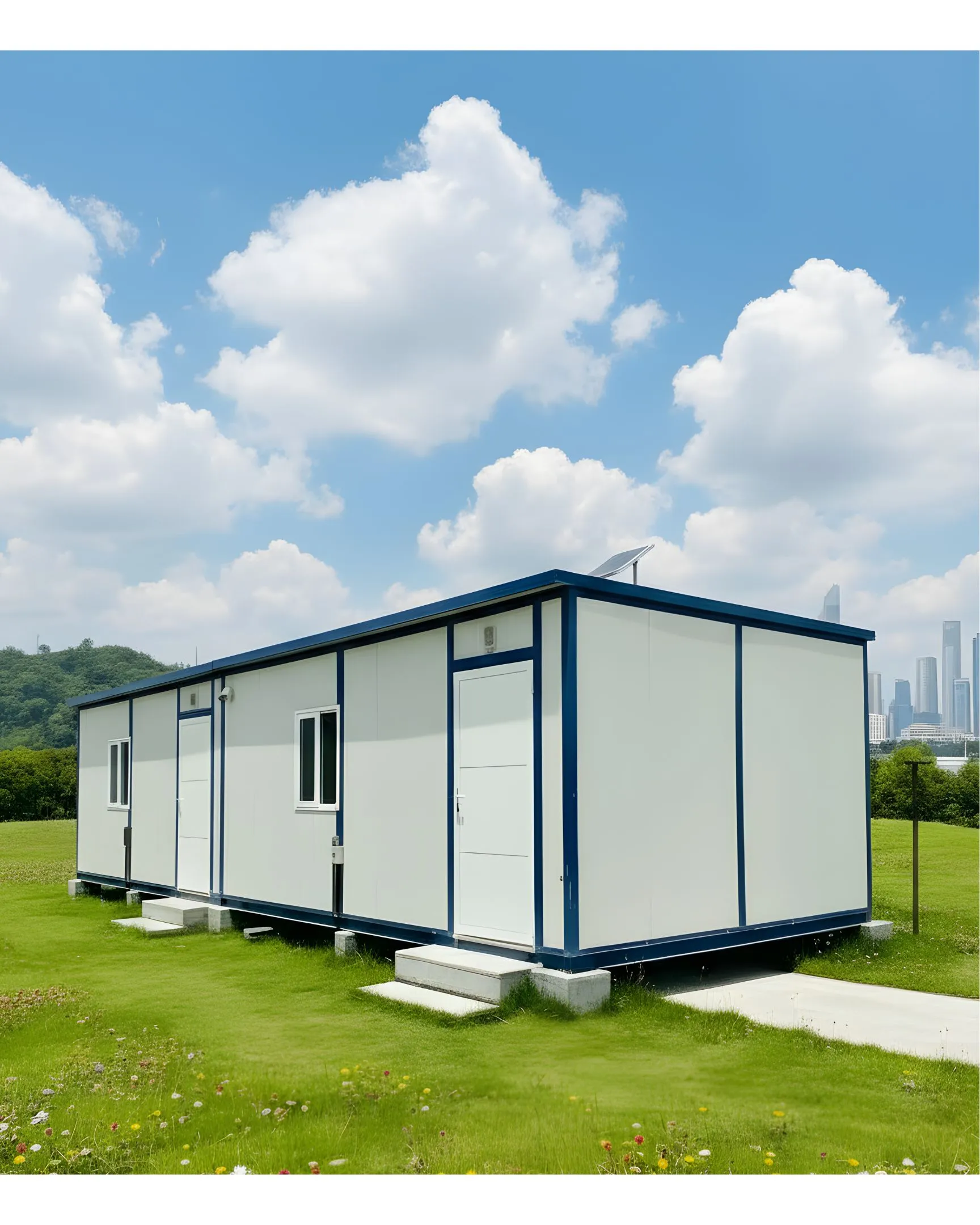

Prefabricated Building

A prefabricated (prefab) building, by definition, is where an entire building or an assembly of its components is manufactured at an offsite facility and assembled onsite from self-sustained volumetric modules or separate panels.06-Jan-2022

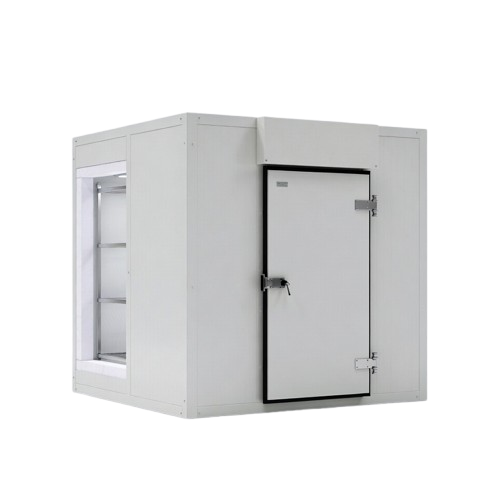

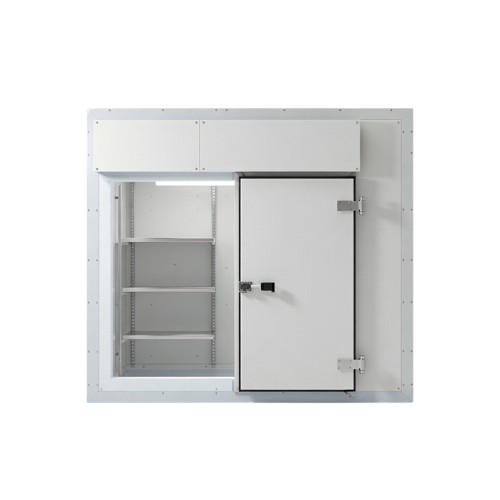

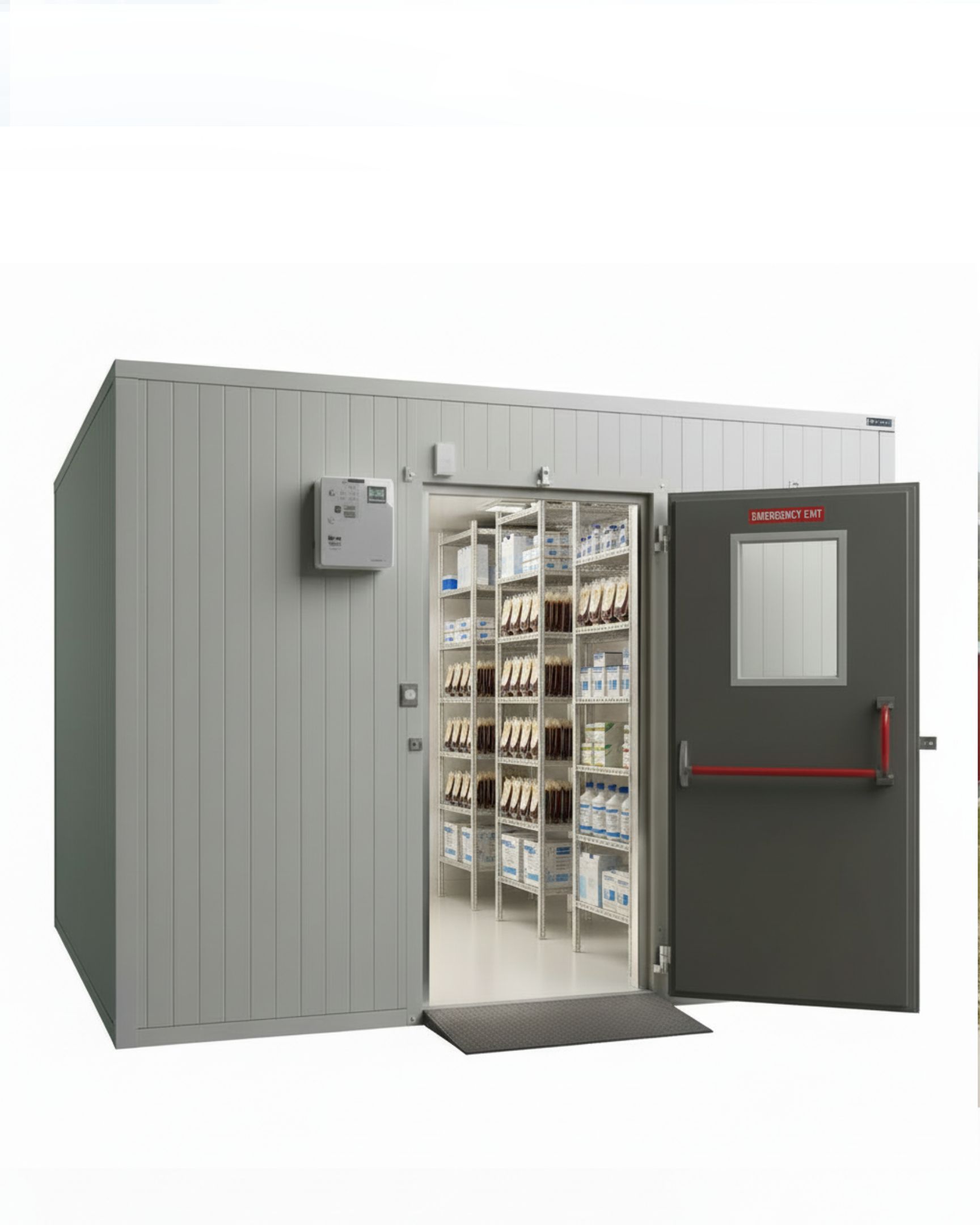

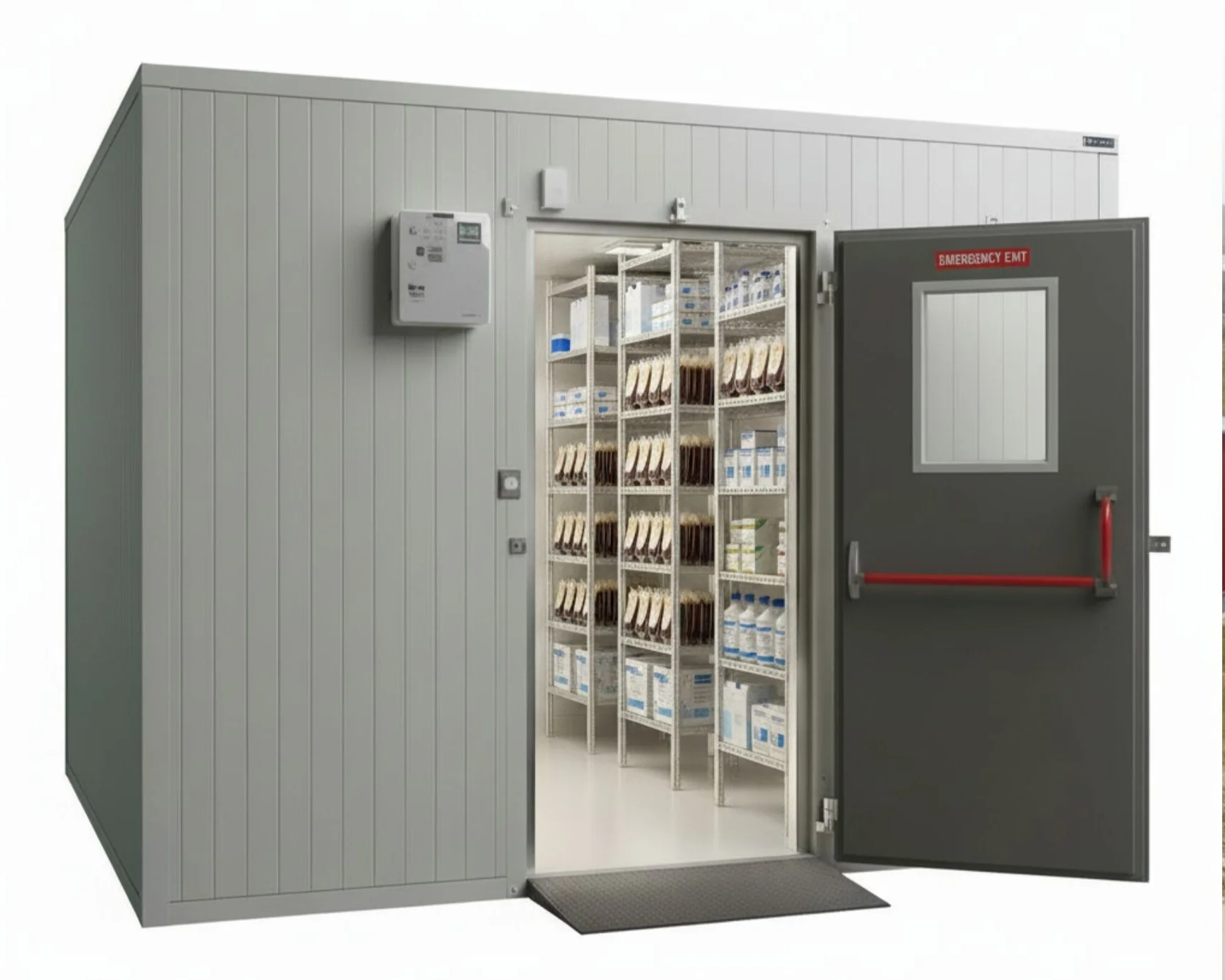

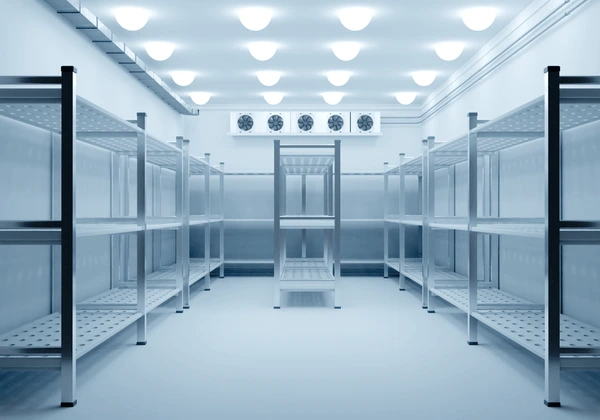

Cold Storage Solutions

Cold storage warehousing ensures that goods are maintained at a low temperature. Foods such as dairy products, meat, and vegetables, as well as medicines and certain cosmetics, need to be kept in freezer warehouses or cold stores to maintain their properties.

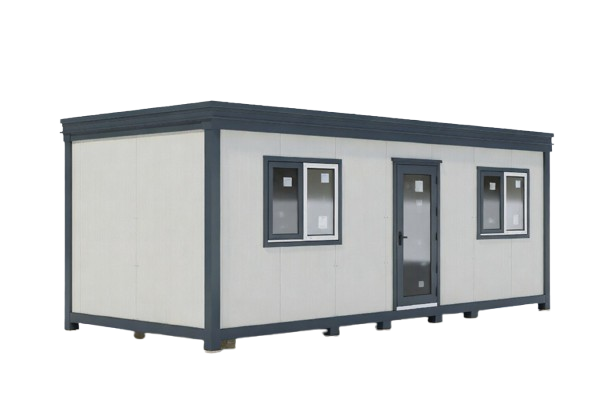

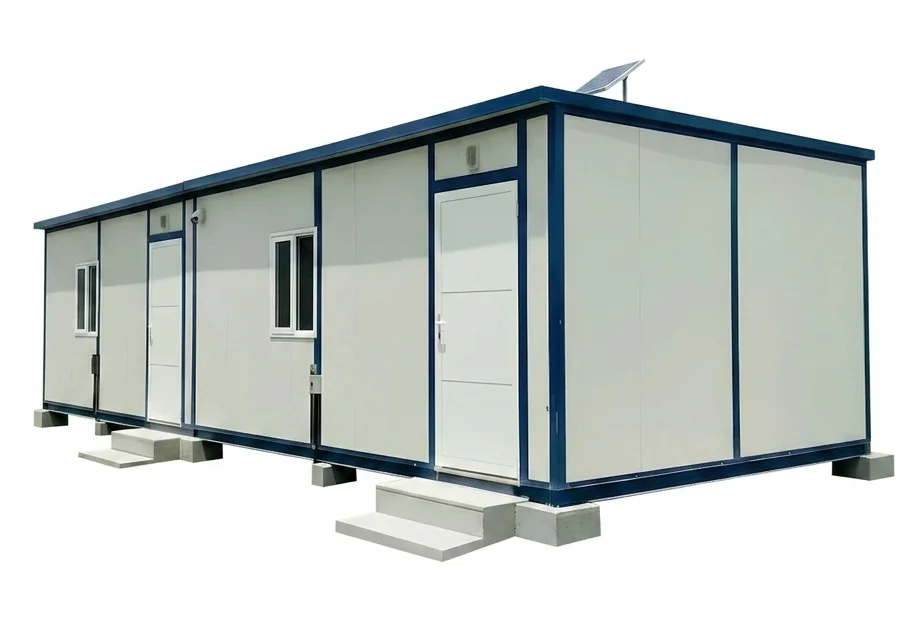

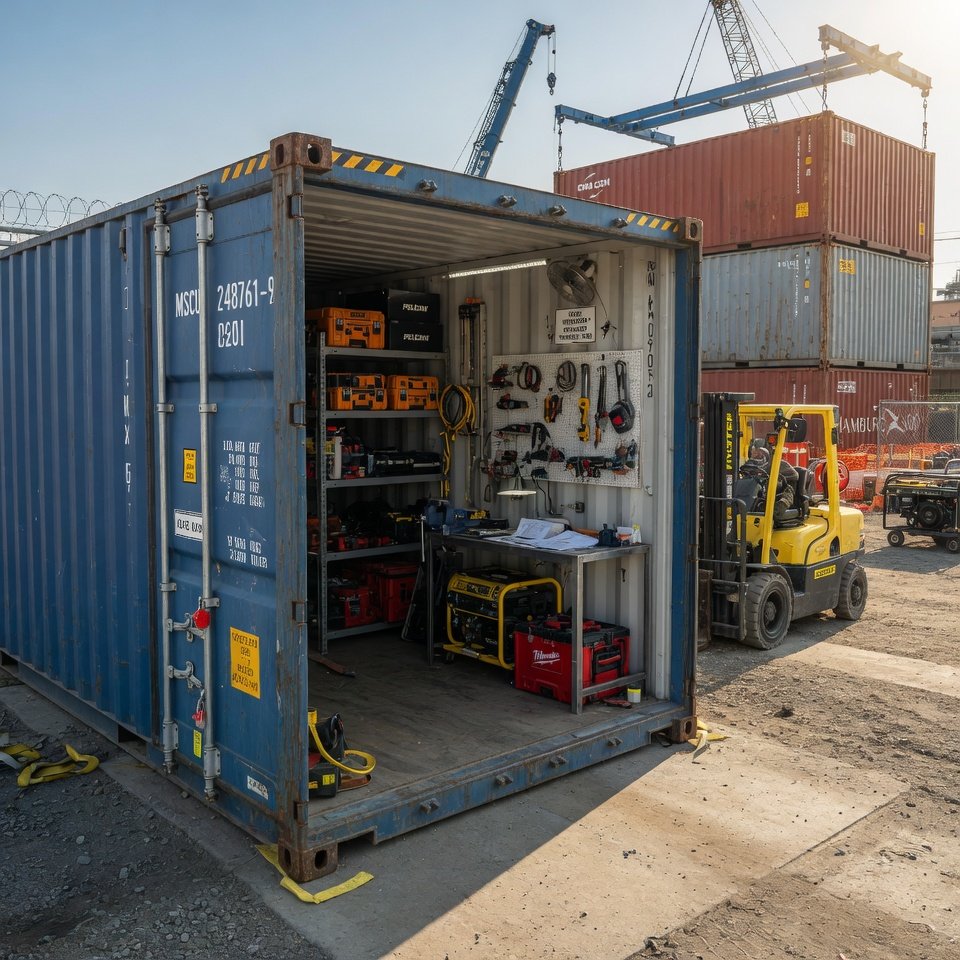

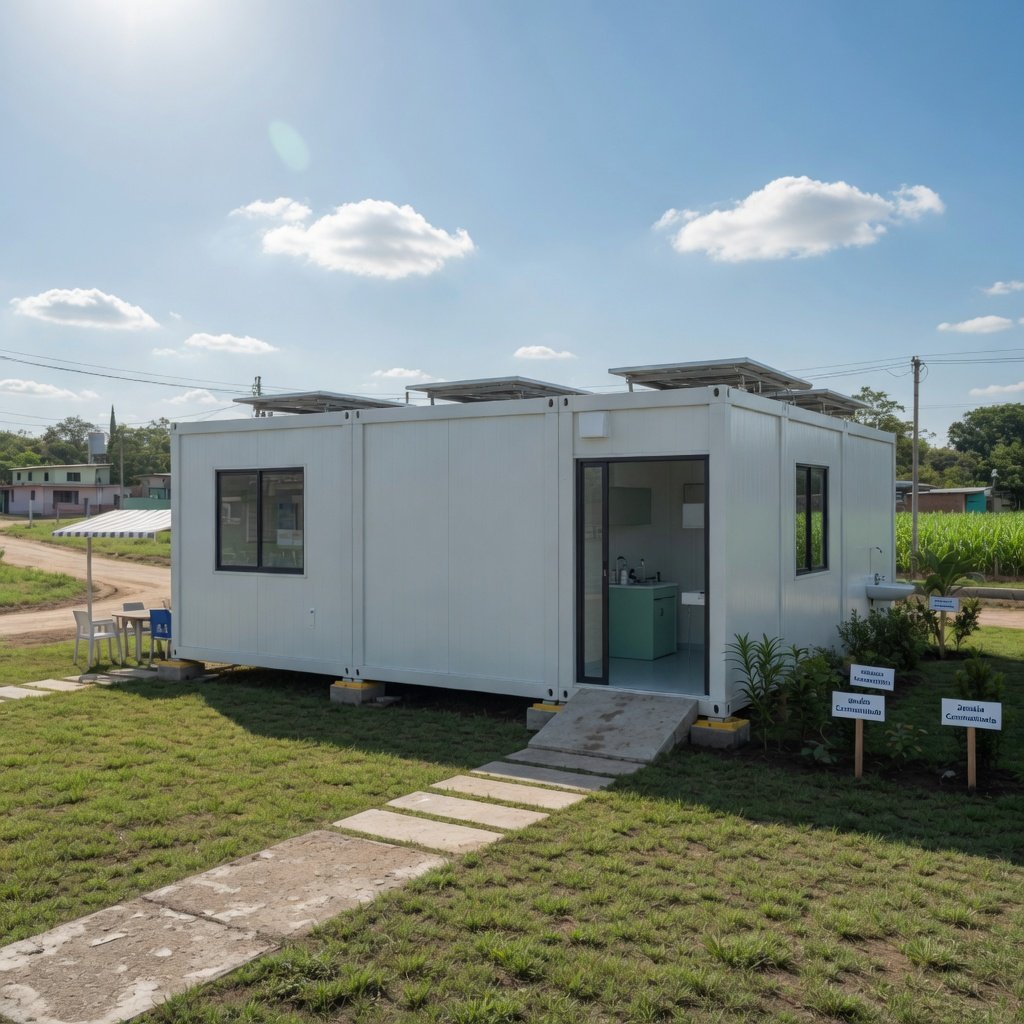

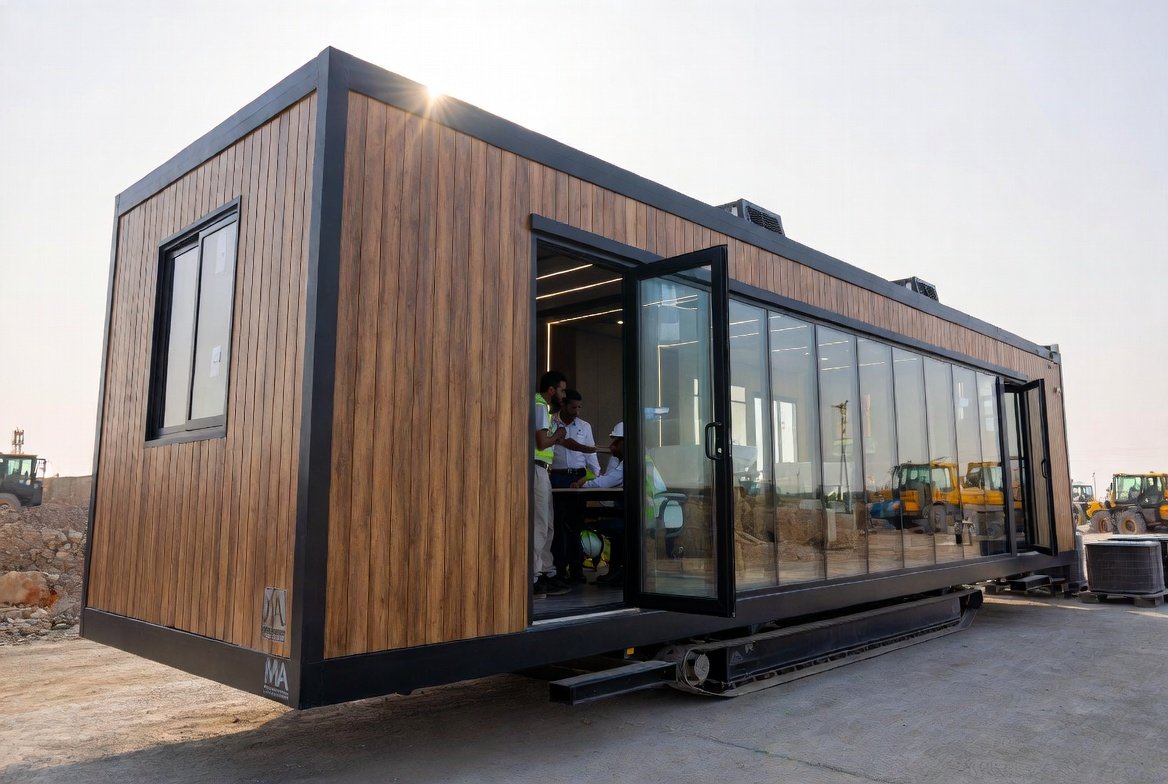

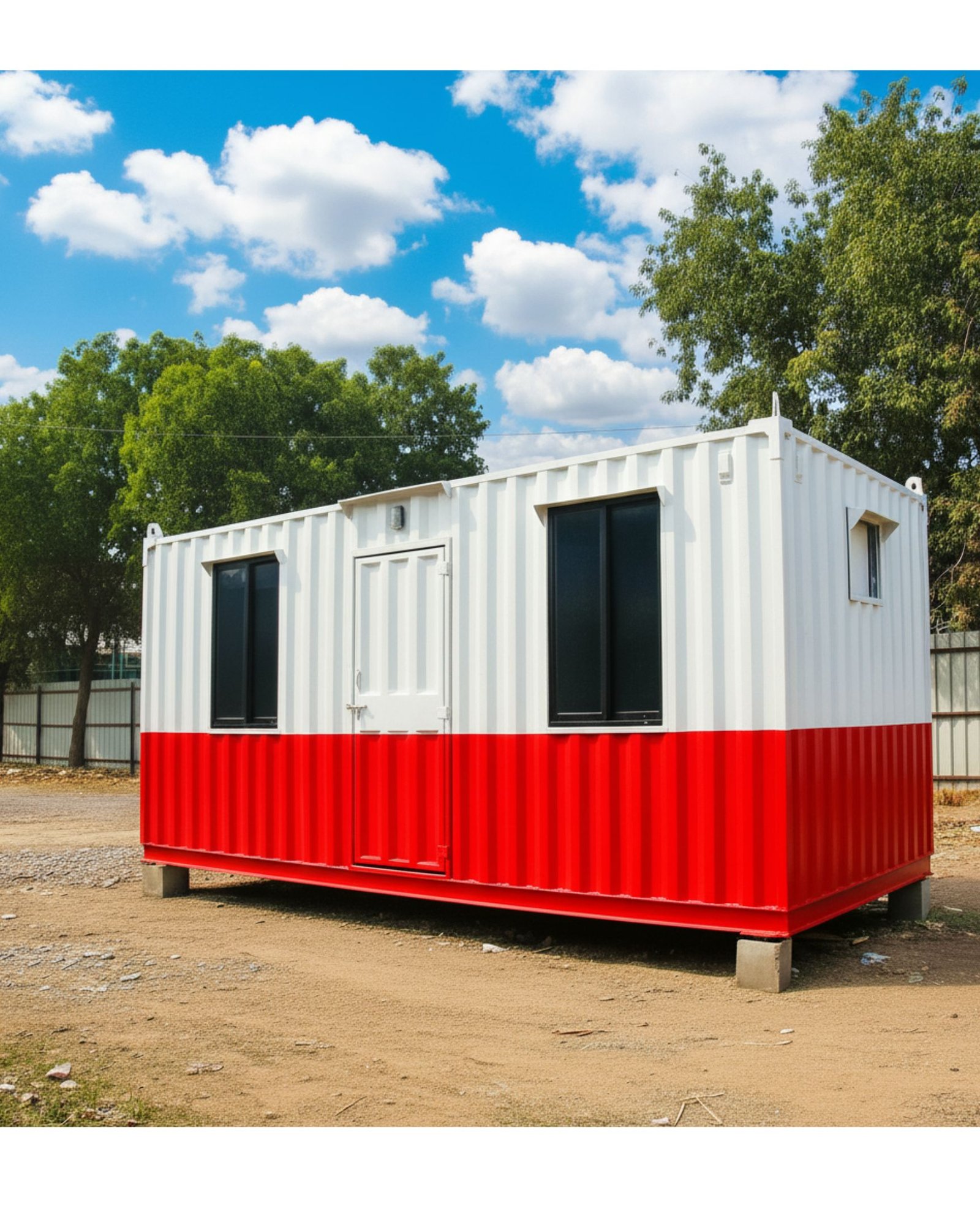

Portable Cabins

PortaCabin is a portable building, or transportable buildings, is a building designed and built to be movable rather than permanently located. Ordinary modern design sometimes known as modular buildings, but, portable buildings can be different in that they more often used temporarily and taken away later.

LGS building

LGS Structures are non-combustible, which is a code requirement for some types of structures. LGS Structures do not rot, shrink, warp, or decompose like wood structures, and can be used in areas where there is a probability of termite attack.

General Fabrication

Fabrication of metal components and assemblies involving bending, forming, cutting and welding.

Refrigerated Cool Van

Nulla quis lorem ut libero malesuada feugiat. Sed porttitor lectus nibh praesent sapien massa.

Articles from the work

Latest news

Get in touch today

Receive your free quote

Thank you for your message. It has been sent.
There was an error trying to send your message. Please try again later.

Customer reviews

Sandwiche panels great quality

Zaman Ali

I buy and experienced their services and they are working very proffessionally and humble staff they have.
highly recomended

Usama Ali

Excellent services i’ve experienced

Farha Junaid Ahmad

Kamal’s service providers are

Humaira Khadam

What is a Sandwich Panel?2023-11-28T17:11:40+00:00

A sandwich panel is a composite material typically used in construction and industrial applications. It consists of three main components:

1. **Outer Facings or Skins:** These are the outer layers of the sandwich panel and are often made of materials like metal (aluminum or steel), fiberglass, or other materials depending on the specific application. The outer facings provide protection and contribute to the panel’s structural integrity.

2. **Core Material:** The core is the central layer that is sandwiched between the outer facings. The core material can vary widely and is chosen based on the desired properties of the sandwich panel. Common core materials include polyurethane foam, polyisocyanurate foam, expanded polystyrene (EPS), mineral wool, aluminum honeycomb, fiberglass, Nomex honeycomb, carbon fiber, and others. The core provides insulation, rigidity, and sometimes additional structural strength.

3. **Adhesive or Bonding Material:** This is used to bond the outer facings to the core material, creating a unified and structurally stable composite panel.

The combination of these three layers creates a structural and insulating composite material with properties that make it suitable for a variety of applications in construction, transportation, aerospace, and other industries. The term “sandwich panel” comes from the idea that the structure resembles a sandwich, with two outer layers enclosing a core.

Here are some key characteristics and advantages of sandwich panels:

– **Lightweight:** Sandwich panels are often lightweight, making them easy to handle and transport.

– **Thermal Insulation:** The core material provides thermal insulation, contributing to energy efficiency in buildings and other structures.

– **Structural Strength:** Depending on the chosen core material, sandwich panels can provide good structural strength and rigidity.

– **Versatility:** They are versatile and can be used for various applications, including walls, roofs, floors, and partitions.

– **Customization:** Sandwich panels can be customized based on specific project requirements by choosing different types of facings, core materials, and thicknesses.

Common applications of sandwich panels include building construction (for roofing, walls, and partitions), transportation (such as in the manufacturing of RVs and boats), aerospace, and industrial facilities. The choice of the specific type of sandwich panel depends on the intended use and the desired properties for the application.

How many types of sandwich panels are there?2023-11-28T17:04:27+00:00

Sandwich panels are composite materials commonly used in construction and various industries. They typically consist of two outer layers (skins or facings) and a core material sandwiched between them. The core material provides insulation, rigidity, and strength to the panel. There are several types of sandwich panels, and they can be categorized based on the type of core material and the application. Here are some common types:

1. **Polyurethane (PU) Sandwich Panels:**
– Core Material: Polyurethane foam
– Application: Building construction, cold storage, industrial buildings

2. **Polyisocyanurate (PIR) Sandwich Panels:**
– Core Material: Polyisocyanurate foam
– Application: Roofing, wall cladding, industrial facilities

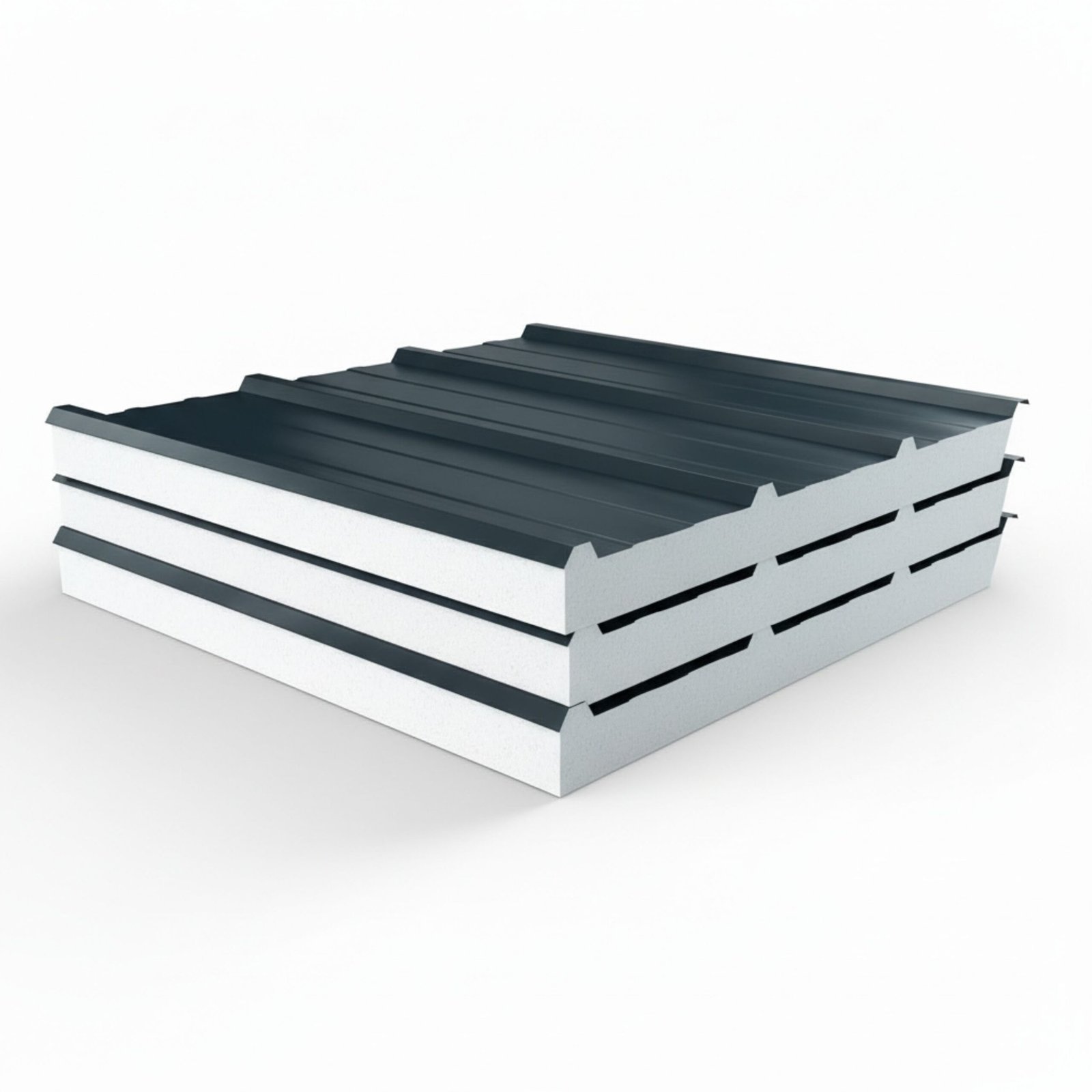

3. **Expanded Polystyrene (EPS) Sandwich Panels:**
– Core Material: Expanded polystyrene foam
– Application: Residential and commercial construction, cold storage

4. **Mineral Wool Sandwich Panels:**
– Core Material: Mineral wool (rock wool or glass wool)
– Application: Fire-resistant panels for industrial and commercial buildings

5. **Aluminum Honeycomb Sandwich Panels:**
– Core Material: Aluminum honeycomb
– Application: Aerospace, marine, architectural applications

6. **Fiberglass Sandwich Panels:**
– Core Material: Fiberglass
– Application: Transportation (e.g., RVs, boats), building construction

7. **Nomex Honeycomb Sandwich Panels:**
– Core Material: Nomex honeycomb (aramid fiber)
– Application: Aerospace, high-performance applications

8. **Carbon Fiber Sandwich Panels:**
– Core Material: Carbon fiber
– Application: Aerospace, high-performance structures

These are just a few examples, and variations exist based on specific requirements and industry standards. The choice of sandwich panel type depends on factors such as thermal insulation, fire resistance, structural strength, and the intended application.

What is PVC sandwich panel?2023-11-28T17:06:16+00:00

A PVC (Polyvinyl Chloride) sandwich panel is a type of sandwich panel that incorporates PVC as one of its key components. The construction of PVC sandwich panels typically involves two outer layers or skins, and a core material made of PVC foam. The combination of these materials results in a lightweight yet sturdy composite panel with various applications.

Here are some key features and applications of PVC sandwich panels:

**Features:**

1. **Lightweight:** PVC sandwich panels are known for their lightweight nature, making them easy to handle and install.

2. **Insulation:** The PVC foam core provides thermal insulation properties, making PVC sandwich panels suitable for applications where temperature control is important.

3. **Durable:** PVC is known for its durability and resistance to weathering, chemicals, and moisture. This makes PVC sandwich panels resilient in different environmental conditions.

4. **Versatility:** PVC sandwich panels are versatile and find applications in both interior and exterior construction projects.

5. **Cost-Effective:** Compared to some other types of sandwich panels, PVC sandwich panels can be cost-effective, providing a balance between performance and affordability.

**Applications:**

1. **Building Construction:** PVC sandwich panels are used in the construction industry for wall cladding, roofing, and partitioning. They are valued for their insulating properties and ease of installation.

2. **Signage and Displays:** PVC sandwich panels are commonly used in the production of signs, displays, and exhibition booths due to their lightweight and printable surface.

3. **Transportation:** PVC sandwich panels can be used in the transportation industry for applications such as the interior panels of recreational vehicles (RVs), caravans, and other mobile structures.

4. **Industrial Applications:** Depending on the specific formulation and properties, PVC sandwich panels may be used in various industrial settings for applications requiring a combination of strength, insulation, and resistance to environmental factors.

It’s important to note that while PVC sandwich panels have certain advantages, the choice of sandwich panel type should be based on the specific requirements of the project, considering factors such as load-bearing capacity, insulation needs, fire resistance, and environmental conditions.

Is Sandwich Panel Waterproof?2023-11-28T17:07:39+00:00

The waterproofness of a sandwich panel depends on the materials used in its construction and the overall design. In general, many sandwich panels are designed to be water-resistant or waterproof to varying degrees, but the specific level of waterproofing can vary based on factors such as the type of core material, the quality of sealing joints, and the outer facing materials.

Here are some considerations regarding the waterproofing of sandwich panels:

1. **Core Material:** The core material plays a crucial role in determining the panel’s resistance to water. Some cores, like those made of closed-cell foam materials (e.g., polyurethane or polyisocyanurate), are inherently resistant to water absorption, which helps maintain the panel’s structural integrity and insulation properties even in wet conditions.

2. **Facing Materials:** The outer layers or facings of sandwich panels also contribute to their waterproofing. Materials like aluminum, steel, or fiberglass are often used as outer facings, providing a protective barrier against water infiltration. Proper surface coatings or treatments may further enhance waterproofing.

3. **Sealing Joints:** The joints between panels, as well as the connections with other building elements, play a critical role in preventing water ingress. Proper sealing of joints with waterproofing materials, sealants, or gaskets is essential to ensure that water cannot penetrate through gaps.

4. **Installation:** The installation process is crucial for maintaining the waterproofing integrity of sandwich panels. If panels are not installed correctly, with attention to sealing and weatherproofing details, there is an increased risk of water infiltration.

It’s important to note that while sandwich panels can offer good waterproofing characteristics, their performance may vary based on the specific type and quality of materials used, as well as the adherence to proper installation practices. In applications where water resistance is critical, it’s advisable to consult with the manufacturer’s specifications and guidelines to ensure that the chosen sandwich panels meet the required standards for waterproofing. Additionally, local building codes and regulations may also dictate specific requirements for waterproofing in different construction applications.

Which Sandwich Panel is Best?2023-11-28T17:08:43+00:00

Determining the “best” sandwich panel depends on the specific requirements of the project and the application. Different types of sandwich panels are designed to meet various needs, such as thermal insulation, structural strength, fire resistance, and resistance to environmental conditions. Here are a few common types of sandwich panels and their typical applications:

1. **Polyurethane (PU) Sandwich Panels:**
– **Advantages:** Good thermal insulation, lightweight, and versatile.
– **Applications:** Building construction, cold storage, industrial facilities.

2. **Polyisocyanurate (PIR) Sandwich Panels:**
– **Advantages:** Excellent thermal insulation, fire-resistant.
– **Applications:** Roofing, wall cladding, industrial buildings.

3. **Mineral Wool Sandwich Panels:**
– **Advantages:** Fire-resistant, good acoustic insulation.
– **Applications:** Industrial and commercial buildings, where fire resistance is a priority.

4. **Aluminum Honeycomb Sandwich Panels:**
– **Advantages:** Lightweight, high strength.
– **Applications:** Aerospace, marine, architectural applications.

5. **Fiberglass Sandwich Panels:**
– **Advantages:** Lightweight, durable, corrosion-resistant.
– **Applications:** Transportation (e.g., RVs, boats), building construction.

6. **PVC Sandwich Panels:**
– **Advantages:** Lightweight, versatile, cost-effective.
– **Applications:** Building construction, signage, displays, transportation.

7. **Nomex Honeycomb Sandwich Panels:**
– **Advantages:** Lightweight, high strength.
– **Applications:** Aerospace, high-performance applications.

8. **Carbon Fiber Sandwich Panels:**
– **Advantages:** Lightweight, high strength, excellent stiffness.
– **Applications:** Aerospace, high-performance structures.

When choosing the best sandwich panel for a specific application, consider the following factors:

– **Insulation Requirements:** Consider the thermal insulation properties needed for the project.

– **Structural Requirements:** Evaluate the load-bearing capacity and structural strength required.

– **Fire Resistance:** Determine if the project has specific fire safety requirements.

– **Environmental Conditions:** Consider factors such as resistance to moisture, chemicals, and UV exposure.

– **Cost Considerations:** Evaluate the overall cost-effectiveness of the chosen sandwich panel for the project budget.

It’s advisable to consult with structural engineers, architects, and construction professionals to determine the most suitable sandwich panel based on the specific needs of your project. Additionally, adhere to local building codes and standards to ensure compliance with regulations. Manufacturers’ specifications and guidelines for each type of sandwich panel should also be carefully reviewed.
